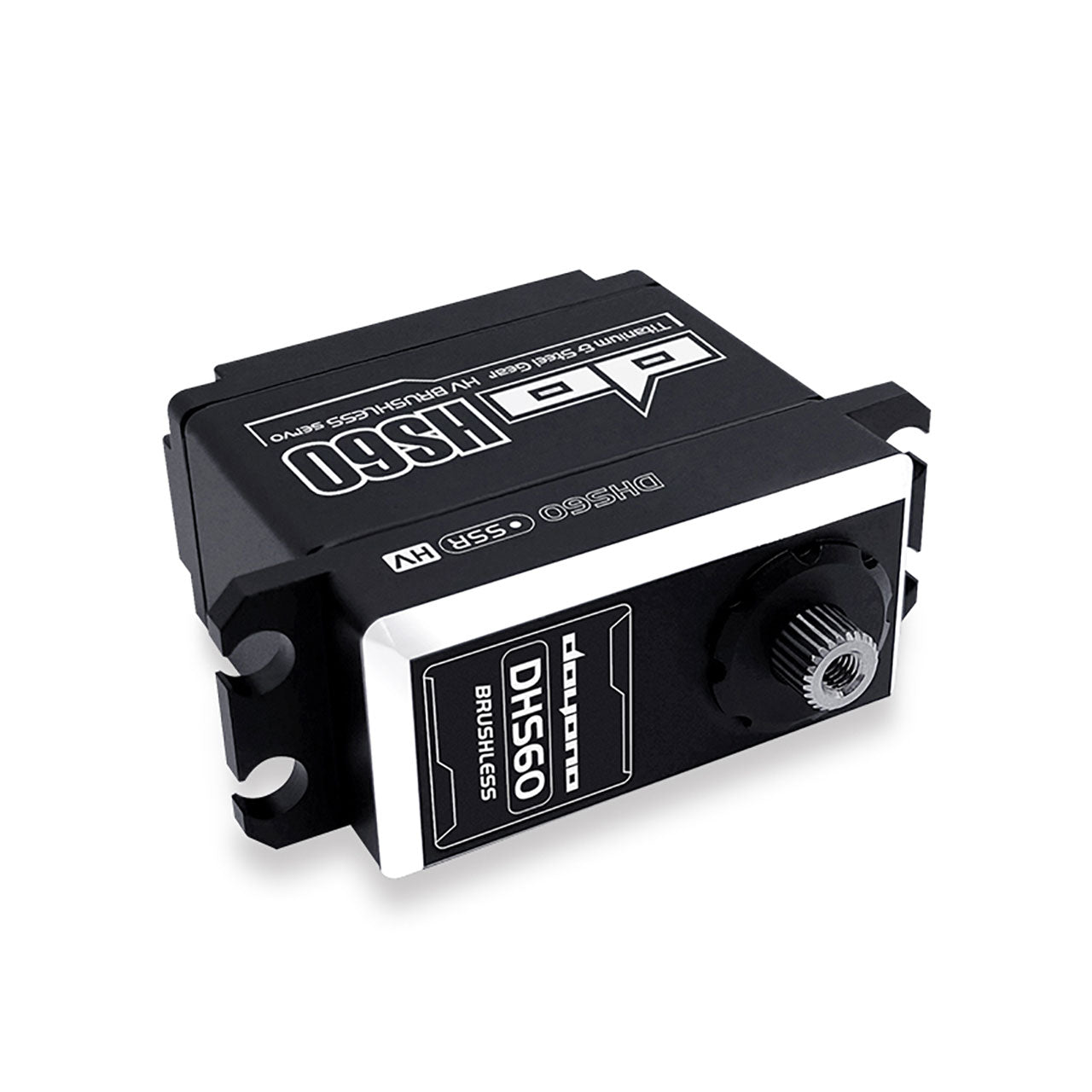

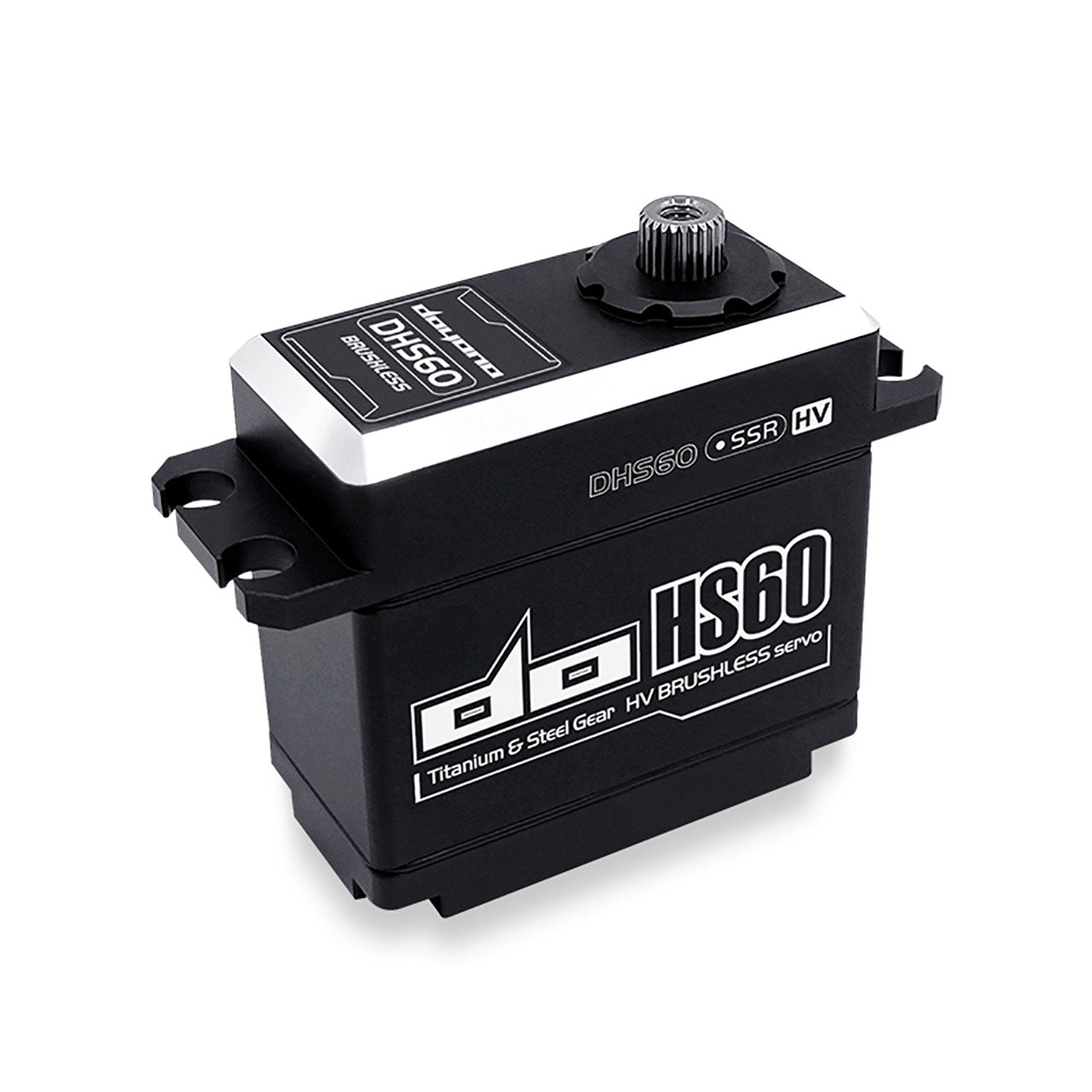

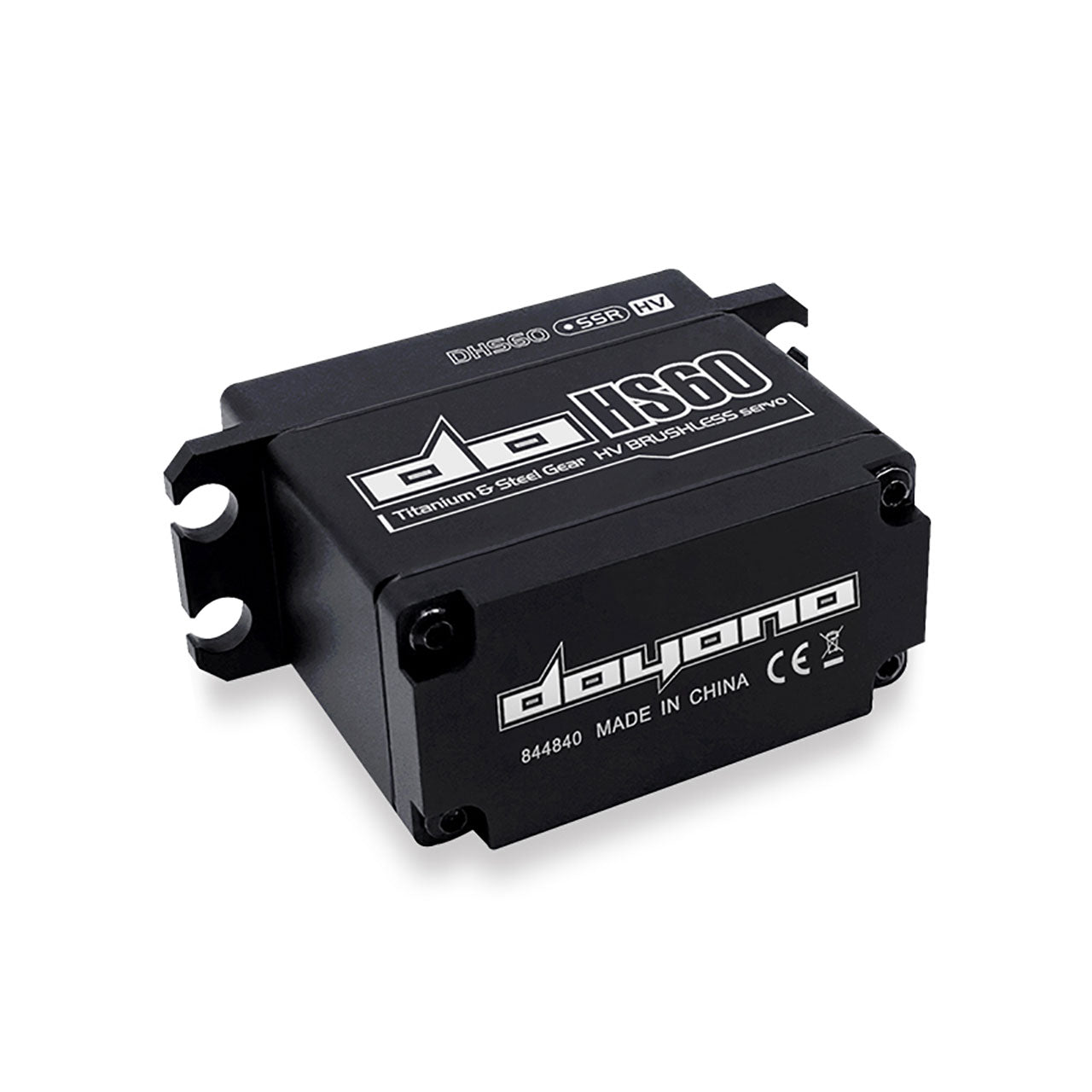

Product information "Doyono Brushless Servo HV CNC aluminium case 60.0kg/0.068sec @8.4V"
Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 60kgcm for brushless motors has a titanium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.
Features:
- High Voltage Servo
- Gears made of durable titanium and steel
- Lightweight aluminum housing
- Very weather resistant
- Operating Voltage: 6.0-8.4V
- 2µs dead band, 1520µs neutral point
- 180mm connection wire length
Technical Specifications:
| Voltage: |
6.0V |
8.4V |
| Speed: |
0.096sec |
0.068sec |
| Torque: |
46.0kgcm |
60.0kgcm |
| Motor: |
Brushless |
| Gear: |
Titanium / Steel |
| Bearing: |
yes, dual |
| Max. Travel: |
~100° (bei 800: 2200µs) |
| Quiescent Current: |
60mA @6.0V |
| Rated Current: |
0.2A @6.0V |
| Blocking Current: |
3.6A @6.0V |
| Dimensions: |
40.7x20.5x38.9mm |
| Weight: |
84.0g |
| Output Gear: |
25T |
